Equipment Description

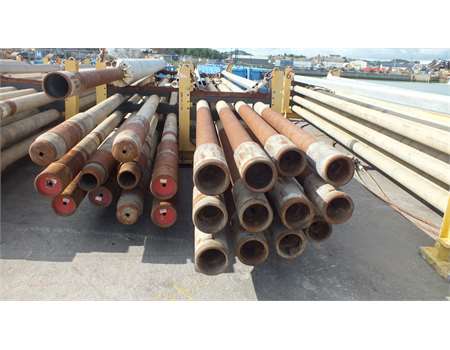

Monobore Production Riser String, Landing string, 6-5/8" x 14 m (46 ft) Range III, G-105, FMC69 Connection, Grant Prideco H-Series. Pipe can also be used for HDD.

Size: 6-5/8"
Grade: G-105
Wall: 0.598"
Inside diameter: 5-1/4"
Connection: FMC-69 8-1/2" OD x 5-1/4" ID
Pin Tong: 37"
Box Tong: 17"
Total Weight 2401 lb. (1089 kg.) each w/o Thread Protectors

NOTES:
1. 1 Milled Slot 0.250" Deep for Identification Stamping
2. Protectors Shown as Dotted Lines.
3. Back 2" from Shoulder after Each Recut. Recut Length 7"
4. From Elevator Shoulder 4" along Box. Recut Length 1-3/4" approx.
5. Make-Up Torque: 55-60,000 ft-lbs
6. Fit Stabbing Guide on Box Prior to Stabbing Pin to Box. Run Box Up.
7. 100% 15ksi Hydrostatic Pressure Test and Drift Tested on All Joints

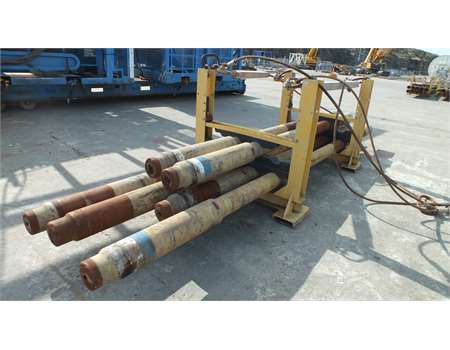

Various size Pup Joints included.

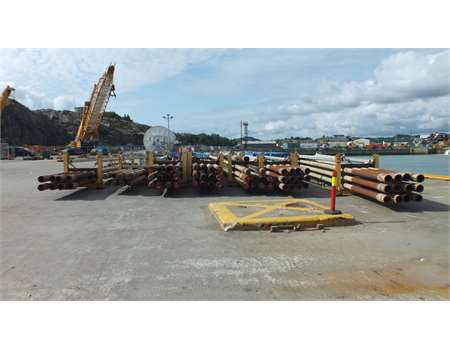

Furnished with Riser Transportation Racks.

Inspection reports available upon request.

Various FMC riser joints with FMC Speedloc connections.
