Equipment Description

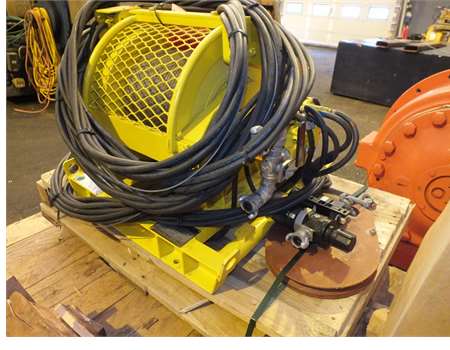

Air driven winch for personnel transport, man-rider winch, Ingersoll Rand Model LS150RLP, CE Marked, New surplus.

Safe Working Load 150 kg on outer wire layer, max 159 m wire
Local throttle control at winch.
Progressive drive and emergency stop.
Speed 0 - 31 m/min with full load.
Air consumption 0 - 2,2 m3/min @ 6,3 bar

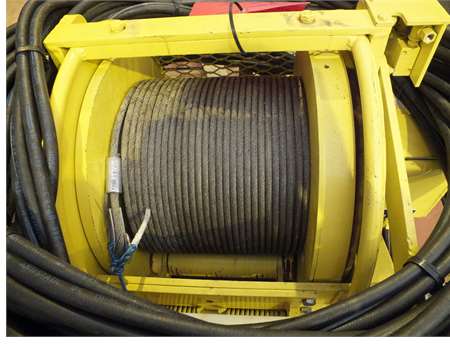

Drum Size: Barrel x Flange x Length: 244 x 442 x 300 mm
Drum Capacity: 262 m
Wire rope diameter: 10 mm
Winch weight 150 kg.
Air filter, lubricator and regulator
Snatch block with one sheave for mounting in derrick
Winch is mounted on steel skid.
1“ air hose is recommended

The winch have a very compact design and heavy steel construction. The piston motor are fit for "poor quality" air which are often found offshore. The winch comes with drum guard, emergency stop, overload protection, slack wire system, limit switches, marine paint and foundation for bolting. The two individual brakes are automatic fail-safe.
