Equipment Description

The Conductor Tensioning Unit (CTU) maintains tension in the conductor system, preventing buckling under compressive loads from the BOP or its own weight. It allows controlled lateral deflection due to wave action without excessive stress, enabling the use of a smaller-diameter conductor while also minimizing vortex-induced vibration.

Specifications
Maximum Rated Tension Capacity: 200 metric tonnes
Conductor Suitability: 9 5/8”, 13 3/8", 20", 30” & 36”
Maximum System Hydraulic Pressure: 229 bar
Tensioner Maximum Stroke: 300mm
Hydraulic Fluid Tank Capacity: 130 litres

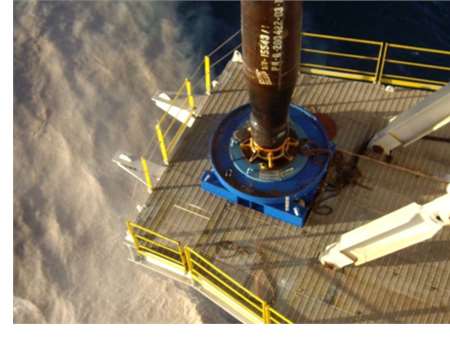

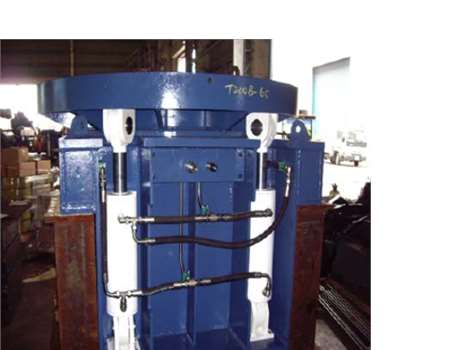

Equipment Gallery
