Land Rig 2000 hp National 1320 UE

Equipment Description

Land Rig 2000 hp National 1320 UE

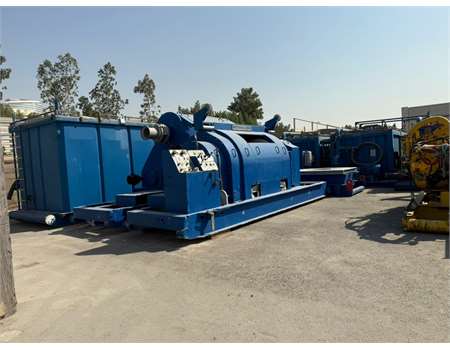

• Draw-work: National 1320-UE Draw-works, 1-1/2” Wireline Sand reel complete with 12000 ft of 9/16in sand line Make up and Brake out cathead complete with 2 GE 752 DC Motors 1 Crown-O- Matic 1 driller console with One Elmago Brake 6032 cooling system with water tank equipped with 1 each of 3x4 Mission Centrifugal Pump driven by electric Motor.
• Mast & Sub-Structure: Mast Made by Branham, Low Lift Cantilever Height 147 X 30 feet capacity 1,000,000 lbs. Static Hook Load 1,000,000 lbs. at 12 lines. Mast front leg I beam and rear leg angle section; Maximum wind load capacity with pipe racked in mast 75 MPH Racking Platform capacity 5” DP 173 stands, four stand 10” DC, eight stand of 6 ½” DC Complete with 1 each Deadline Anchor 1 each Monkey board 1each Stabbing board. Substructure Swing low lift Cantilever Static Rotary Beam Capacity 750,000 lbs. Set back capacity 700,000 lbs. Height to rotary beams 20' - 6" Drill floor height 25 feet x 37 feet wide. 1 each sub base floor lb 01 1 sub base floor lb 02 1 bottom box driller side 1 bottom box off driller side Complete with 1 Vee door complete 1 Catwalk 1 Doghouse Crown National 6 X 60” Dai meter sheaves. 1 X 60” diameter fast line.
• Top Drive: New/Unused Year Manufacture 2009 Top Drive 500 Ton Complete Assembly Manufacture : NOV Portable Drive Type HPT-06-500 2AC SG TT High Torque.
• Travelling Block & Hook: National 500 ton Unitized Travelling Block, 500 Ton Hook.
• Rotary Table: National C 37 ½” with independent drive & transmission. Complete with a) 2 Traction DC Motor : Make by EMD type D79
• SCR System: 5 Bay, Make by Electric Industries Inc, Houston , Texas.

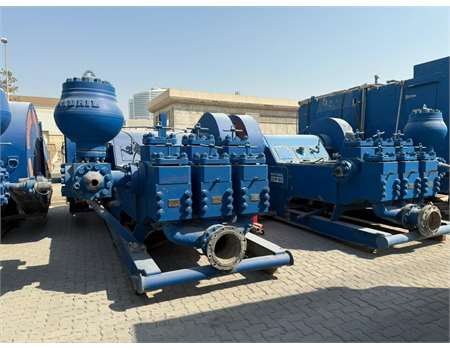

• Mud Pumps: 3 each National 12P160 Input power : 1600 hp with 2 Traction DC Motors Make by EMD type D79,Blower motors 10HP c) Supercharger pump 1 d) Liner cooling pump 1 Halco 1 x 1.5C Model# N 12 P 160 With 5hp motor e) Lube oil gear pump 1 (belt driven) f) Pulsation Dampner 1 Hydril 16 Gal, 5000 psi g) Pressure relief Valve 1 Retsco Reset relief valve 1500 – 5000 psi.

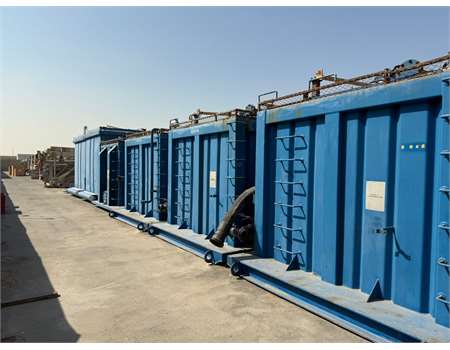

• Mud System: 4 Mud System with mission pump comprises of the following tanks
• 1500 BBL 3 tank mud system complete with eight 10 HP agitators
B. 6x8 centrifugal pumps with 80 HP motors 5x6 centrifugal pumps with 60 HP motors 4x5 centrifugal pumps with 40 HP motors
C. Derrick shakers 4 ea
D. one SEE-FLO Type Degasser Make: Milchem Drilling Control With 10hp motor Vacuum Degasser 1200 gpm

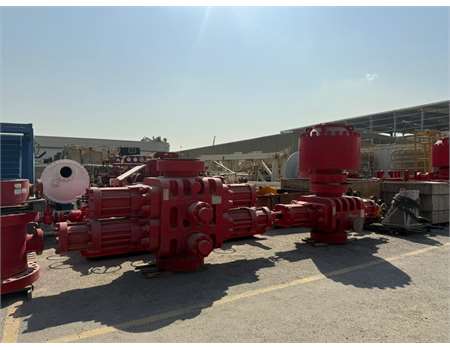

• BOP Stack: 1 Shaffer 13-5/8” 10,000 psi. Double Ram BOP flange top & bottom with large shear bonnet with tandem booster w/ 2 side outlet 4 1/16 10k. 1 Shaffer 13-5/8” 10,000 psi Single Ram BOP flange Top & bottom dressed with standard bonnet w/ 2 side outlet 4 1/16 10k. 1 Shaffer 21-1/4" 2k Double Bop flange top & bottom dress with large shear bonnet in lower cavity with tandem booster. w/ 2 side outlet 4 1/16 5k. 1 Shaffer 21-1/4" 2k Annular BOP Spherical type studded top and flange bottom. 1 Hydril Annular BOP Type : GK-14- 5000 psi 13-5/8’’ 5000 psi studded top & flange bottom. 1 Drilling Spools 3ft 10,000psi with 2 side outlet 3-1/16" 10k.
• Accumulator Unit: 1 unit BOP control unit Mfg. Koomey complete w/ 8 station accumulator 24 bottle 11 gallon & one electric pump and two air pumps WP 2000psi & 50hp motor c/w 2 ea remote panels c/w 150ft Umbilicals
• Choke Manifold: Choke manifold 3-1/16” X 10,000 psi with one 3-1/16” adjustable choke and two 3-1/16” hydraulic choke.
• Wireline Unit: 1 Mathey driven by Hydraulic wire line unit
High Pressure Testing Unit: 1 unit of Koomey one hp testing unit air operated complete with chart recorder.

Any further details or information don't hesitate to email to info@mbgoilfield.com
